Phoenix Contact 3210538 Multi-level terminal block PT 2,5-PE/L/N Time-Limited

Phoenix Contact 3210538 Multi-level terminal block PT 2,5-PE/L/N Time-Limited

Original price was: $9.06.Current price is: $4.53.

SKU: SK0062735-US20260519-084255 Category: Tag:

Description

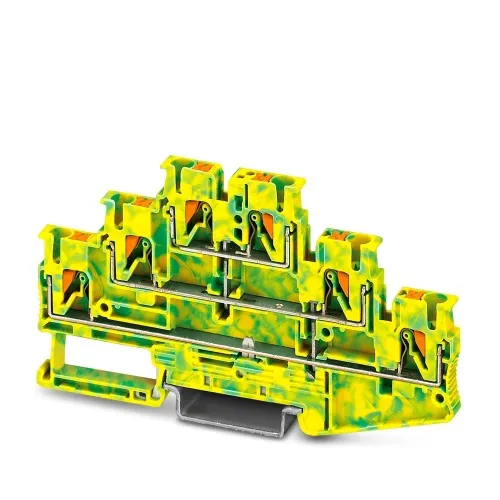

Phoenix Contact 3210538 The terminal block features a multi-level design with a nominal voltage of 500V and a maximum current capacity of 20A, accommodating six connections made via push-in terminals. The rated cross-section for each level varies from 0.14mm² to 4mm², while the mounting type is specified as NS35/7.5 or NS35/15, with an overall color palette dominated by gray tones.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
